The quick editor lets you make quick changes to your floor plan, such as relabeling rooms, adding measurement lines, text, and other elements.
Using the Quick Editor

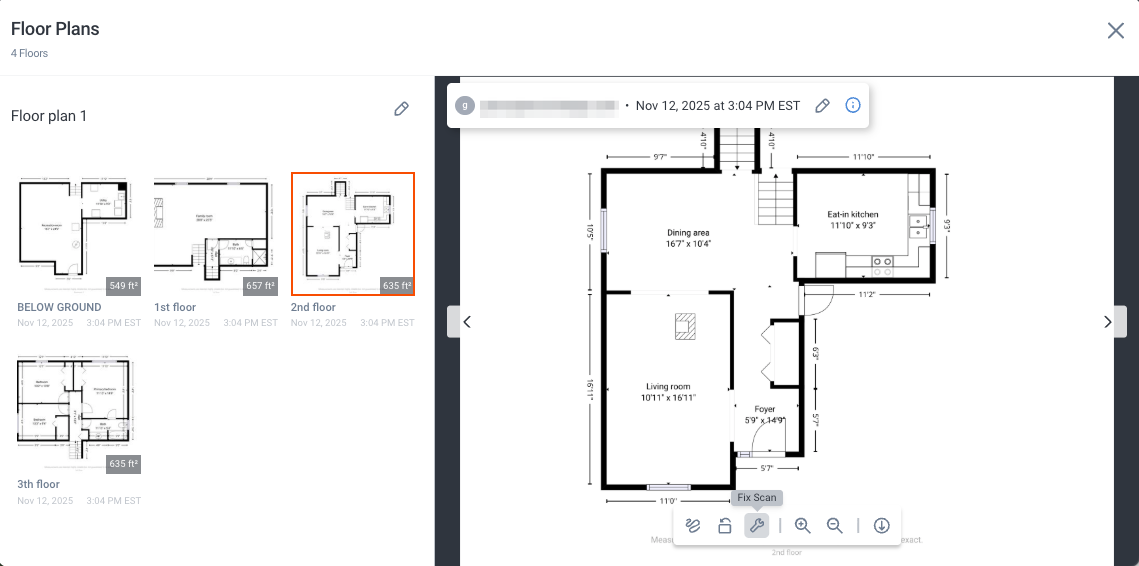

- Under the Structures & Rooms section, click on the requested floor plan.
- Click the Fix Scan wrench icon in the toolbar at the bottom.
- In the editor window, you can re-label a room, add measurement lines, text and other elements.
- Re-label Room: To re-label a room, click the room name, then update the Name field in the pop-up panel on the right.
- Adjust Ceiling Height: Update the Height field, which is 7 feet 10 inches by default.
- Add Measurement Lines: Click the + icon on the left, and select the tape measure icon. Click your mouse to place the points.
- Add Text Box: Click the + icon on the left, and select the text option. Use the text buttons in the top menu to adjust the font size.
- Toggle Dimensions: Room dimensions can be turned on or off by clicking the Toggle Dimensions icon and selecting the room.
- Moving Floor Plan Elements: Click an element to drag and drop it to its new location. Undo/redo buttons are available in the top menu.
- If your floor plan has multiple floors, use the Select Floors dropdown in the top right corner to choose the floor you would like to edit.
- Save your changes to close the Quick Editor.
