In this article:
Encircle supports bluetooth material readings with the Tramex MEX5 and CME5 meters. This means you’ll be able to enter your dry standards and your daily moisture content readings via Bluetooth.
Watch the following video or follow the steps below to learn how to take bluetooth readings.
See Bluetooth Readings in Action

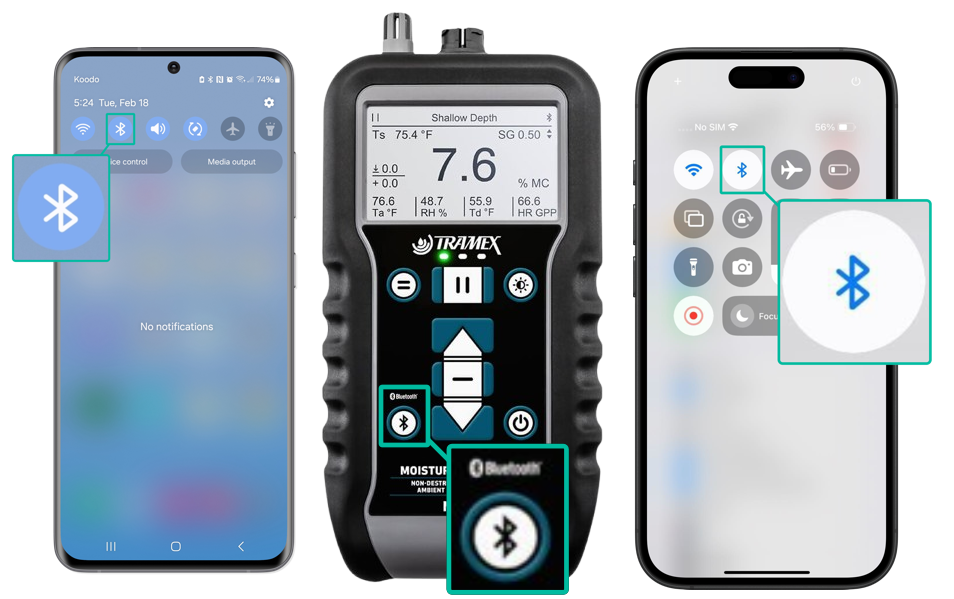

Make sure that Bluetooth is enabled on your meter and your mobile device. You will not need to pair the device or go into your Bluetooth settings to configure this connection.
Taking a Reading via a Photo

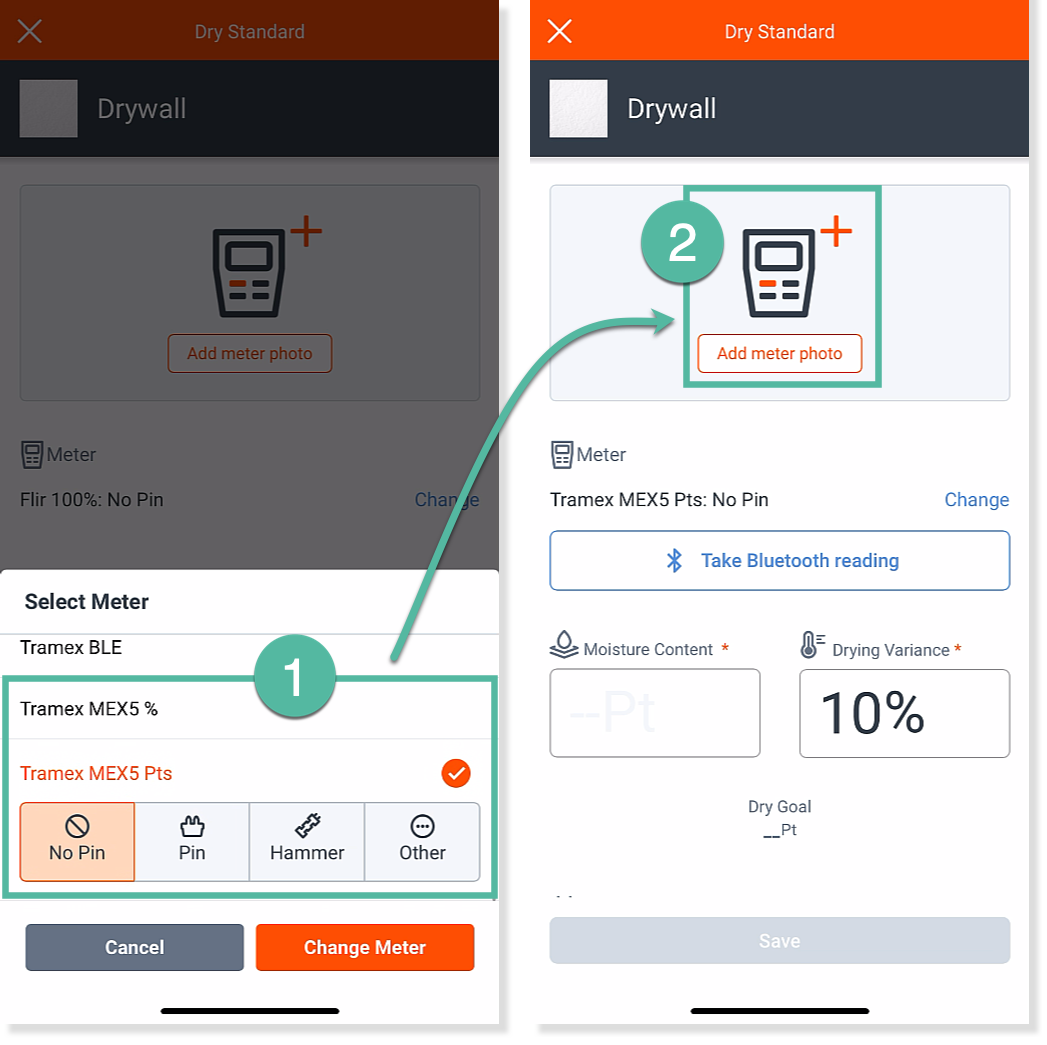

1. In Encircle, select the Tramex MEX5 or the CME5 if measuring concrete (the CME5 will only appear as an option when concrete is selected as the material). After you select this meter for the first time, the app will remember your preference and default to this meter whenever you have the same material(s) selected on your jobs going forward.

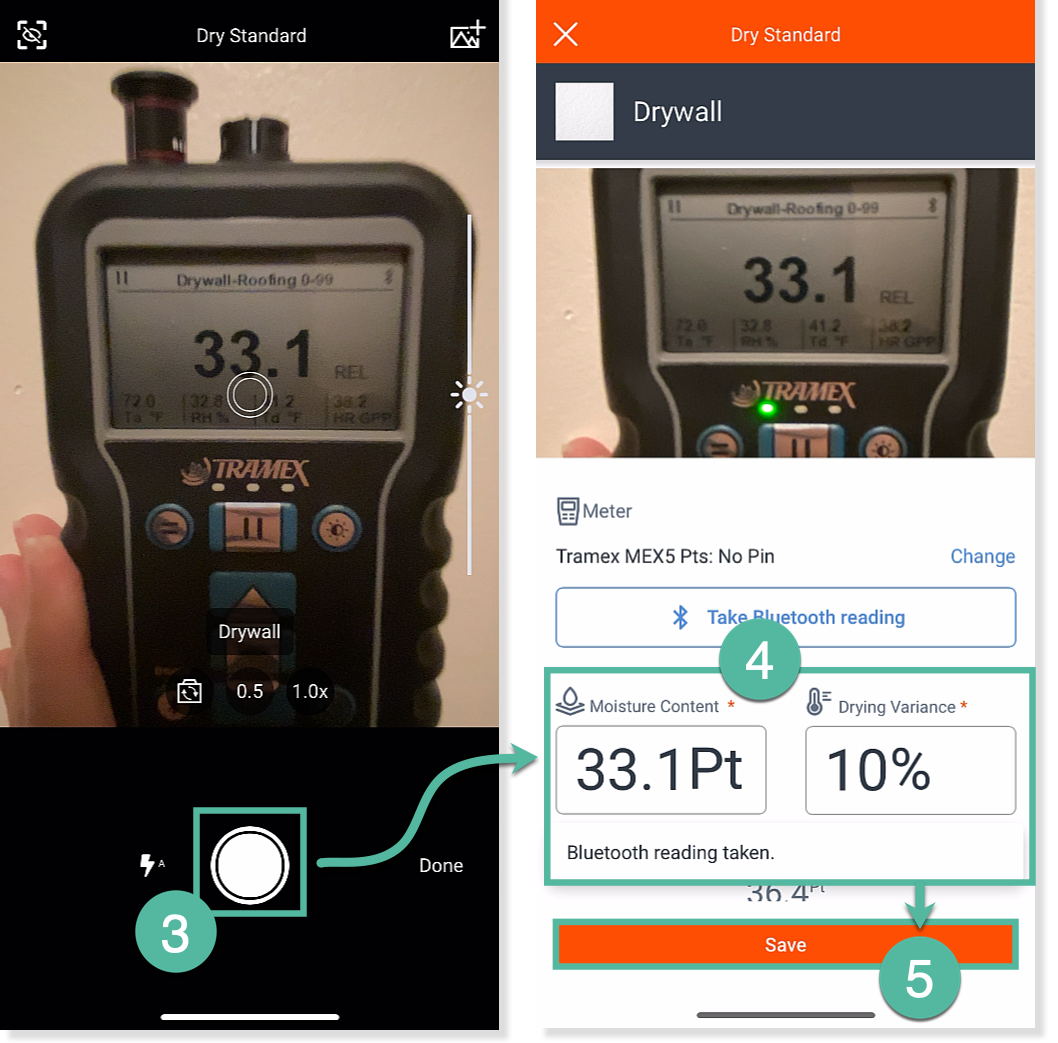

2. Tap Take Meter Photo.
3. Snap a photo of your meter. Keep the sensor in contact with the material while you do this so you get an accurate reading.
4. The app will sync your reading data automatically for you, so that you don't need to enter it manually.
5. Tap Save.
Taking a Reading without a Photo

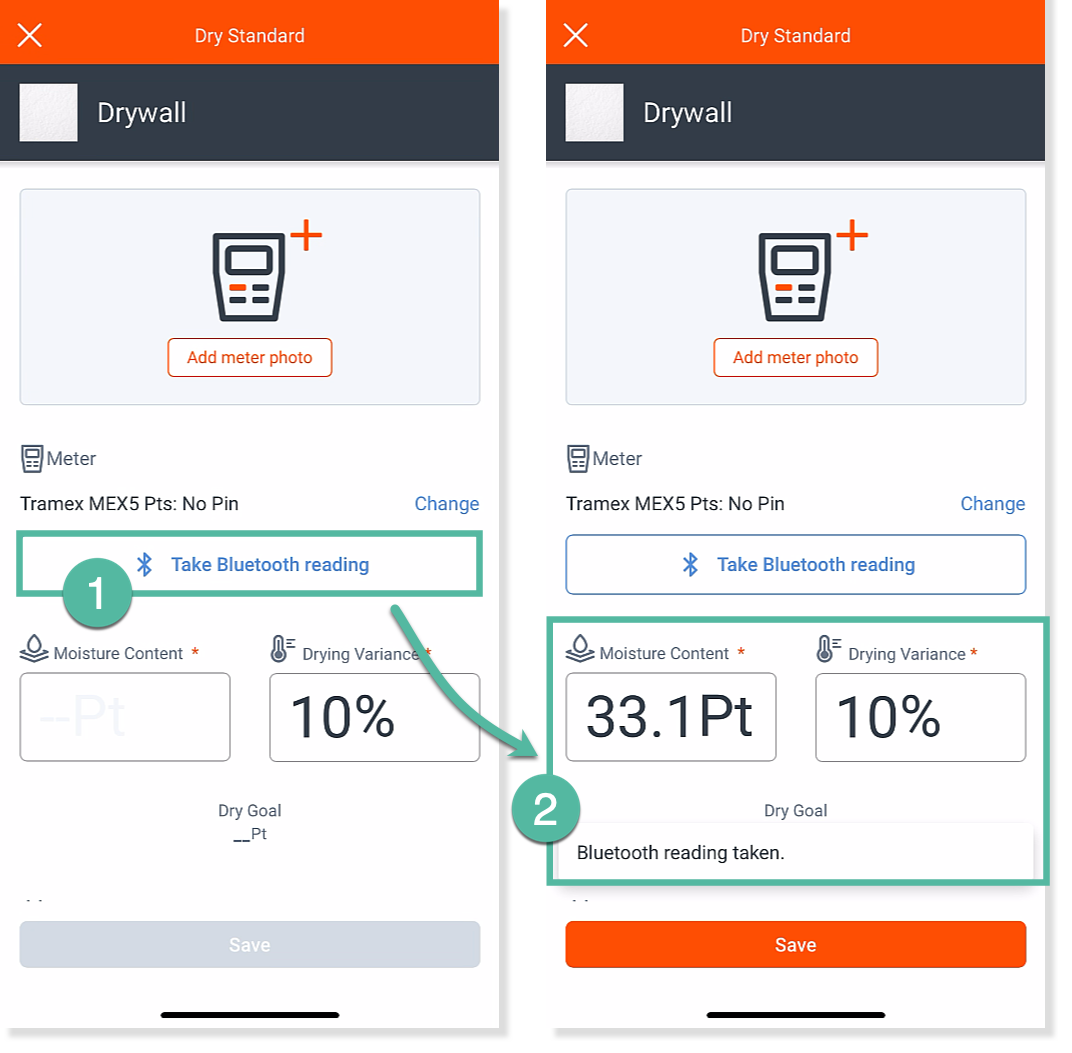

If you’re not taking a reading photo, simply tap Take Bluetooth Reading to instantly take your reading from the meter.

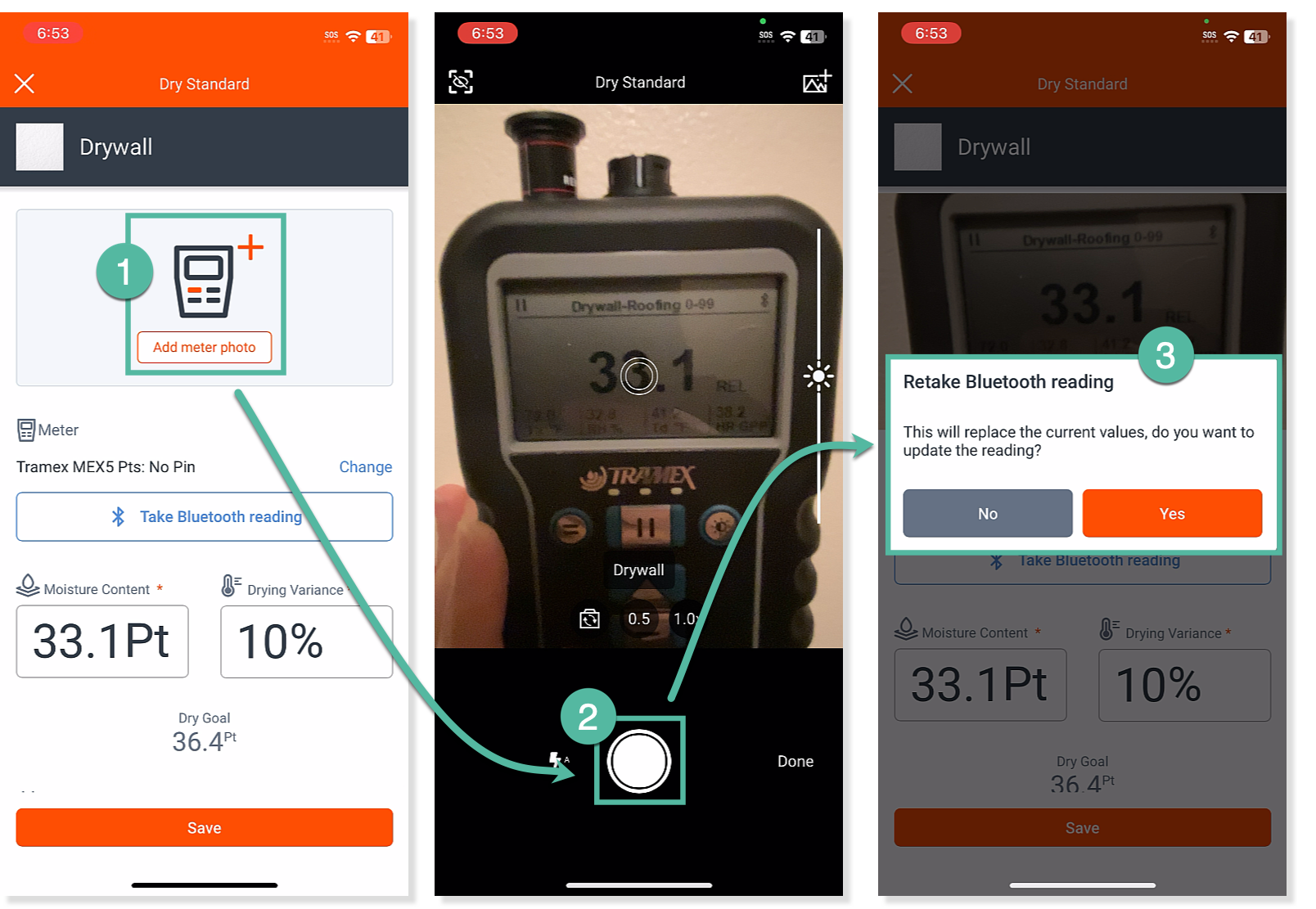

If you go to take a photo afterwards, you’ll have the option to retake your reading and enter new values.
